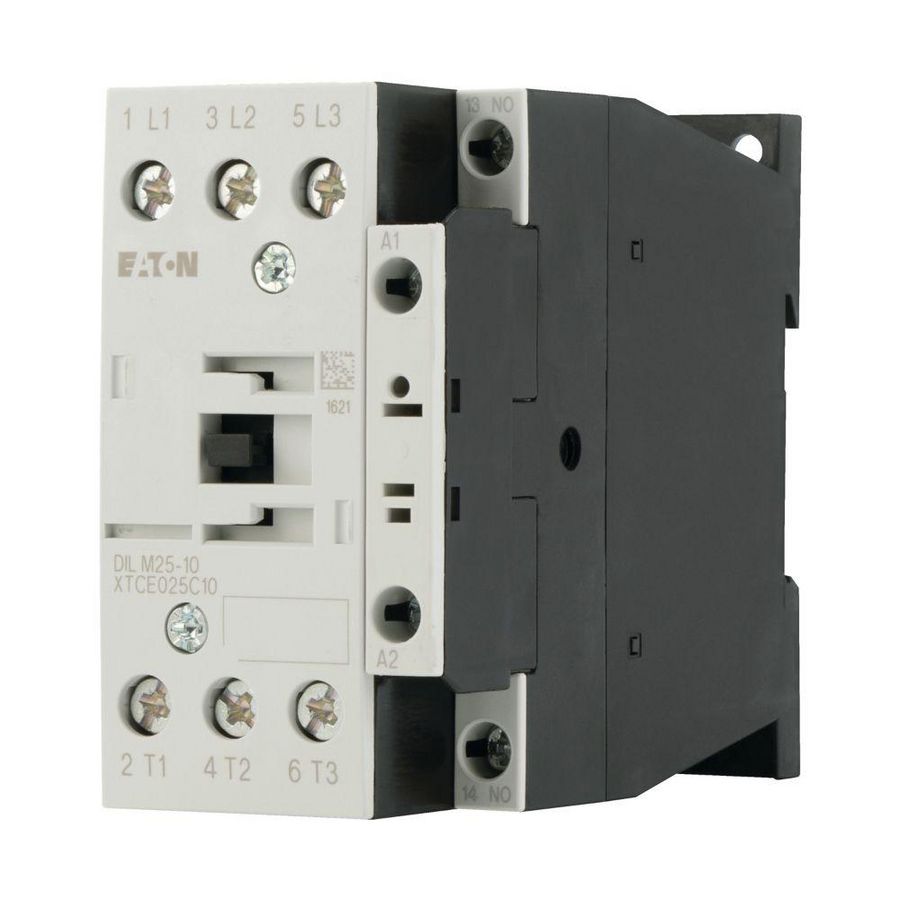

Magneetschakelaar DILM25-10(RDC24) (24-27VDC) 11kW 1m 0v Eaton
4319823
MFG #: 277146
€177,19
/ 1.00
- Aansluitwijze hoofdstroomcircuit: Schroefaansluiting
- Aantal hoofdcontacten als maakcontact: 3
- Aantal hoofdcontacten als verbreekcontact: 0
- Aantal hulpcontacten als maakcontact: 1
- Aantal hulpcontacten als verbreekcontact: 0
- Bedrijfsspanning bij AC 50 Hz: 24 - 690 V
- Bedrijfsspanning bij AC 60 Hz: 24 - 690 V

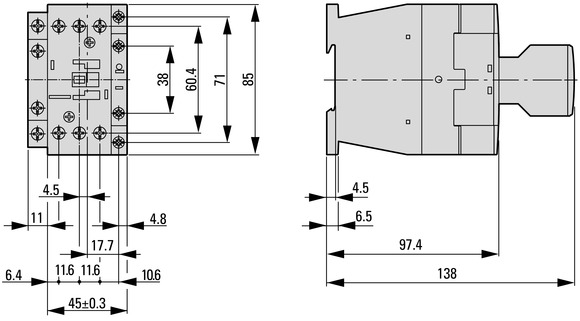

- Breedte: 45 mm
- Diepte: 97 mm
- Hoogte: 85 mm
- Merk: Eaton
- Modulaire uitvoering (voor railmontage): Nee
- Nom. bedrijfsstroom Ie bij AC-1, 400 V: 45 A
- Nom. bedrijfsstroom Ie bij AC-3, 400 V: 25 A
- Nom. bedrijfsstroom Ie bij AC-4, 400 V: 13 A
- Nom. stuurspanning bij AC 50 Hz: 0 - 0 V
- Nom. stuurspanning bij AC 60 Hz: 0 - 0 V
- Nom. stuurspanning bij DC: 24 - 27 V
- Nom. vermogen bij AC-3, 400 V: 11 kW
- Nom. vermogen bij AC-4, 400 V: 6 kW
- Nom. vermogen NEMA: 11 kW
- Serie: DILM
- Type: DILM25-10(RDC24)
- Type stuurspanning: DC
