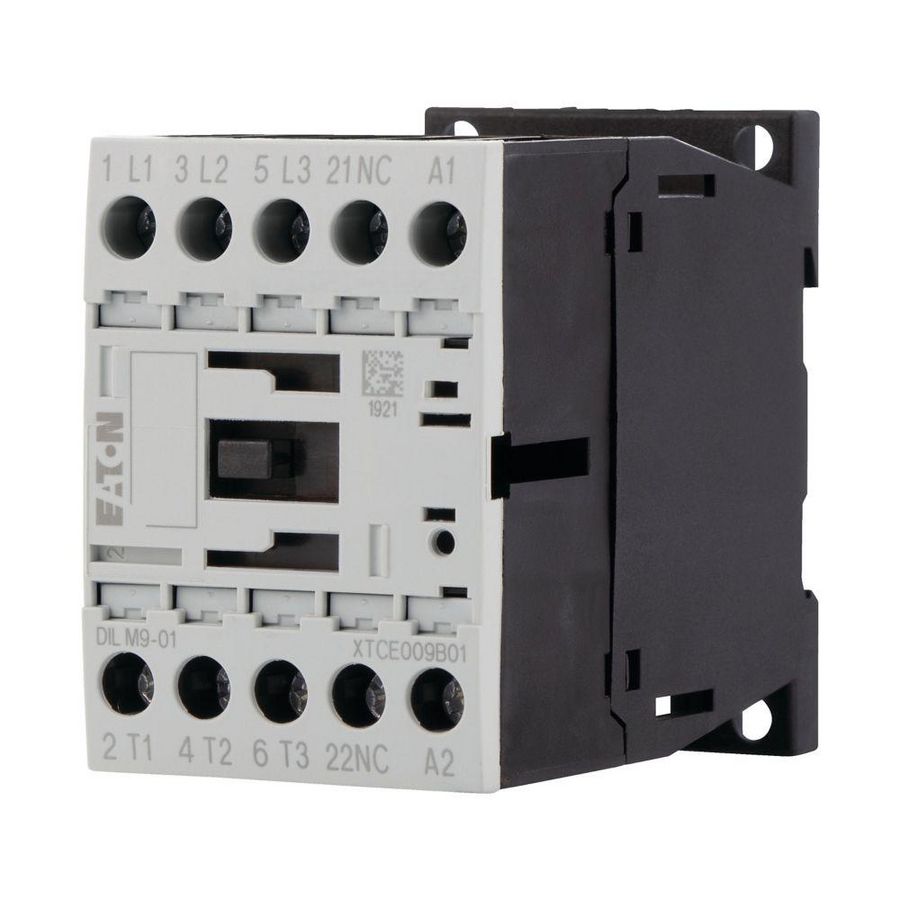

Magneetschakelaar DILM9-01(230V50HZ,240V60HZ) 4kW 0m 1v Eaton
4319673
MFG #: 276725
€52,36
/ 1.00
- Aansluitwijze hoofdstroomcircuit: Schroefaansluiting
- Aantal hoofdcontacten als maakcontact: 3
- Aantal hoofdcontacten als verbreekcontact: 0
- Aantal hulpcontacten als maakcontact: 0
- Aantal hulpcontacten als verbreekcontact: 1
- Bedrijfsspanning bij AC 50 Hz: 24 - 690 V
- Bedrijfsspanning bij AC 60 Hz: 24 - 690 V

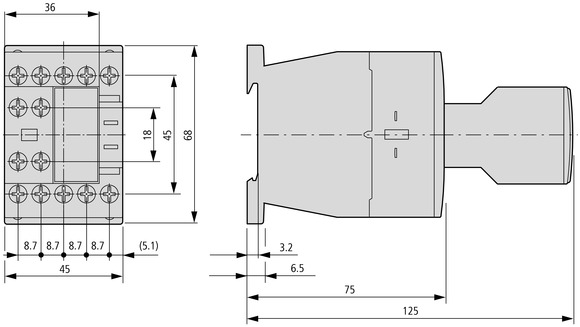

- Breedte: 45 mm
- Diepte: 75 mm
- Hoogte: 68 mm
- Merk: Eaton
- Modulaire uitvoering (voor railmontage): Nee
- Nom. bedrijfsstroom Ie bij AC-1, 400 V: 22 A
- Nom. bedrijfsstroom Ie bij AC-3, 400 V: 9 A

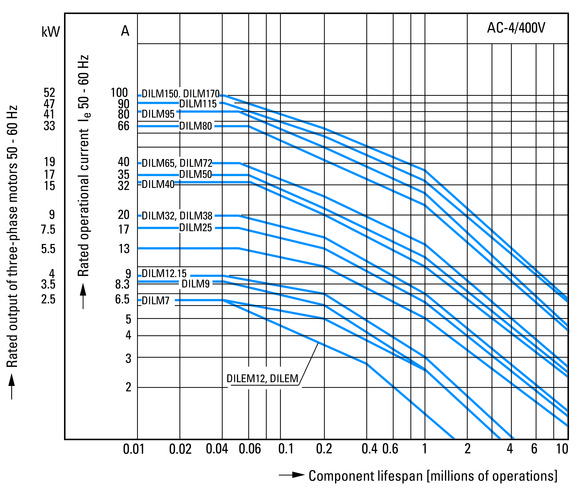

- Nom. bedrijfsstroom Ie bij AC-4, 400 V: 6 A
- Nom. stuurspanning bij AC 50 Hz: 230 - 230 V
- Nom. stuurspanning bij AC 60 Hz: 240 - 240 V
- Nom. stuurspanning bij DC: 0 - 0 V
- Nom. vermogen bij AC-3, 400 V: 4 kW
- Nom. vermogen bij AC-4, 400 V: 2,5 kW
- Nom. vermogen NEMA: 3,7 kW
- Serie: DILM
- Type: DILM9-01(230V50HZ,240V60HZ)
- Type stuurspanning: AC
