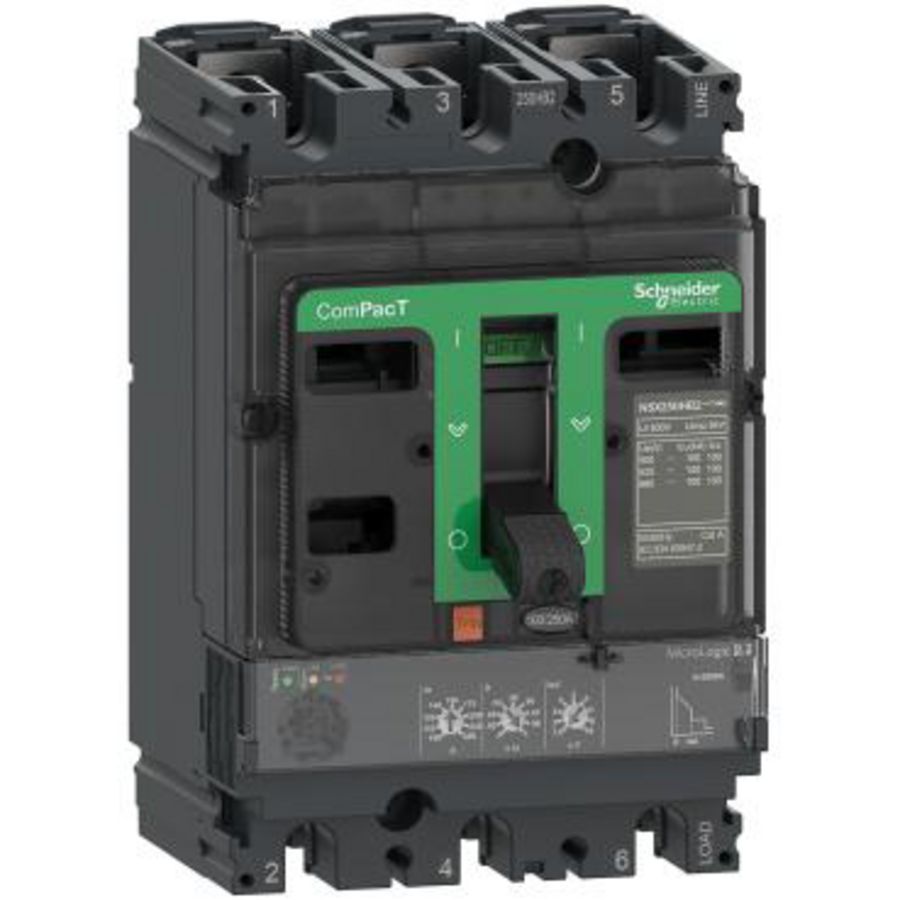

Vermogenschakelaar NSX100B 25kA AC 3P 40A 2.2 ComPact Schneider Electric
4333818
MFG #: C10B32D040
€438,60
/ 1.00
- Aansluitwijze hoofdstroomcircuit: Schroefaansluiting
- Aantal hulpcontacten als maakcontact: 0
- Aantal hulpcontacten als verbreekcontact: 0
- Aantal hulpcontacten als wisselcontact: 0
- Aantal polen: 3
- Apparaatbouwvorm: Inbouwapparaat vaste inbouw techniek
- Beschermingsgraad (IP): IP40
- Compleet apparaat incl. beveiligingsunit: Ja
- Geïntegreerde aardsluitingsbeveiliging: Nee
- Geschikt voor omegarailmontage: Nee
- Instelbereik kortstondigvertraagde kortsluitactivering: 27 - 400 A
- Instelbereik onvertraagde kortsluitbeveiliging: 600 - 600 A
- Instelbereik overbelastingsbeveiliging: 18 - 40 A
- Merk: Schneider Electric
- Met geïntegreerde onderspanningsspoel: Nee
- Met tripcontact: Ja
- Motoraandrijving geïntegreerd: Nee
- Motoraandrijving optioneel: Ja
- Nom. afschakelvermogen Icu bij 400 V, 50 Hz: 25 kA
- Nom. continustroom Iu: 40 A
- Nom. spanning: 690 - 690 V
- Omegarailmontage optioneel: Ja
- Positie aansluiting hoofdstroomcircuit: Voorzijde
- Serie: ComPacT NSX, new generation
- Type: Moulded case circuit breaker (MCCB)
- Uitvoering van het bedieningselement: Knevelgreep
